Spontaneous renal artery dissection

47 yo M presents with sudden onset LUQ pain.

Conventional CT shows focal cortical hypo-density in left kidney. Note complete absence of iodine uptake on spectral analysis, consistent with infarct.

Careful evaluation of left renal artery on 40 keV images shows a distinct flap consistent with dissection. No central source of clot was discovered, and patient was managed conservatively.

This is a pretty rare entity, not previously described with spectral CT.

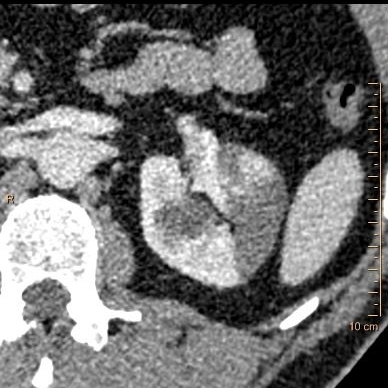

Conventional image shows hypodensity in letf kidney

Conventional image shows hypodensity in letf kidney

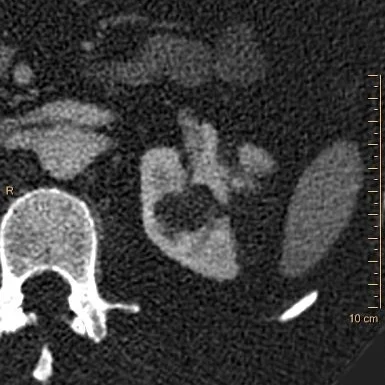

Complete lack of iodine confirms a renal infarct

Complete lack of iodine confirms a renal infarct

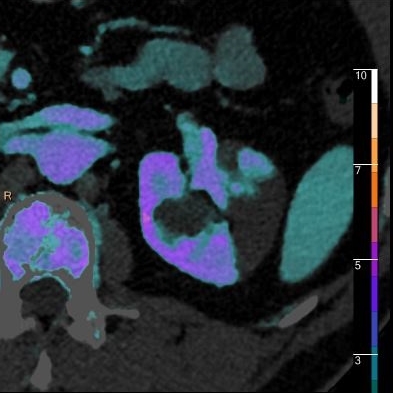

Fusion image nicely demsntrates lack of iodine uptake

Fusion image nicely demsntrates lack of iodine uptake

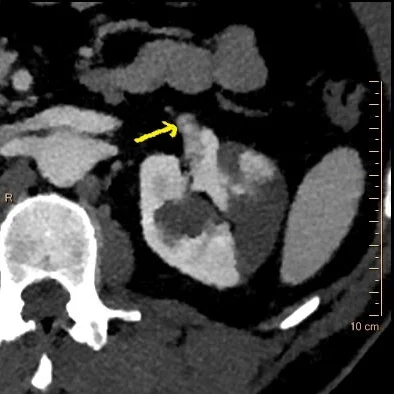

40 keV image clearly shows the renal artery flap consistent with dissection (yellow arrow). Low Kev reconstructions can be used as virtual CT angiograms.

40 keV image clearly shows the renal artery flap consistent with dissection (yellow arrow). Low Kev reconstructions can be used as virtual CT angiograms.
